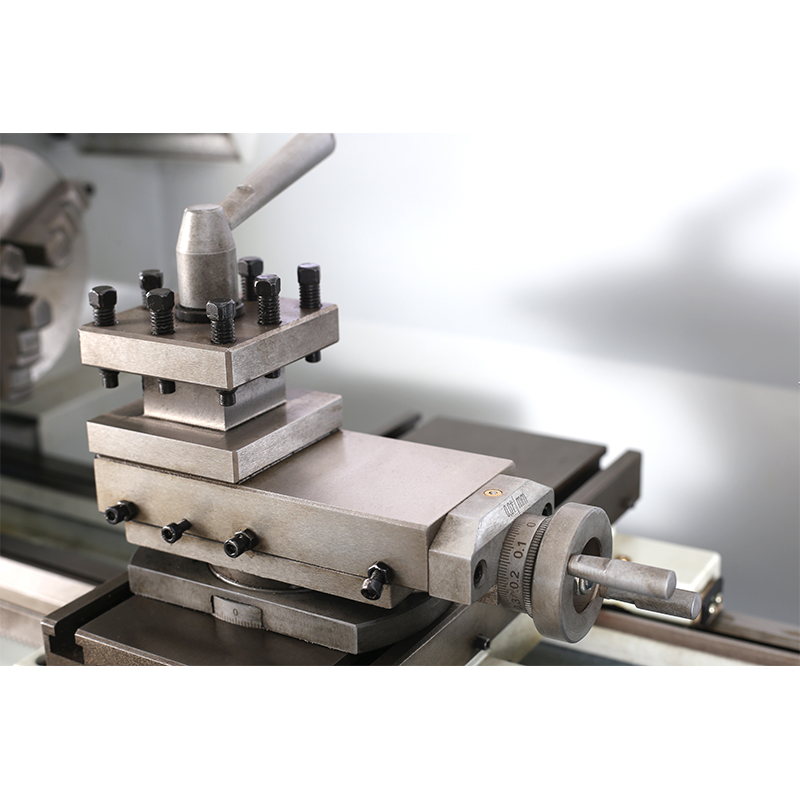

This bench top lathe comes with emergency stop switch, infinitely variable speeds, four-way tool post, professional cross slider, wide applications.

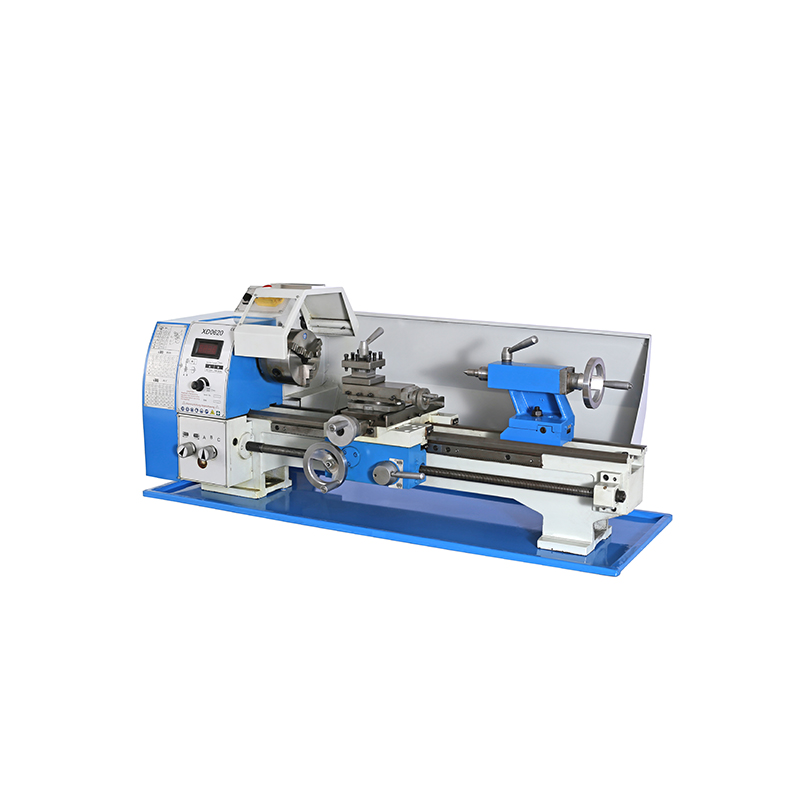

The Precision Mini Benchtop Lathe, designed to perform various types of metal turning, simple to operate. Through high frequency quenching process and precision grinding of high-quality cast iron bed.
50-2500RPM spindle speed sub-level of two tranches spindle gear change speed control, continuously adjustable.
9 cutters, 7 combined center drills, 1 drill press clamp, 1 live center and 1 movable lamp are free for you.
This bench top lathe comes with emergency stop switch, infinitely variable speeds, four-way tool post, professional cross slider, wide applications.
|
机床身上最大工件回转直径 Swing over bed |
250mm |
|
顶尖距 Center distance ; |
550mm |
|
主轴通孔直径 Spindle Bore ; |
26mm |
|
主轴内孔锥度 Spindle ; |
MT#4 |
|
尾轴孔锥度 Tailstock tape |
MT#2 |
|
主轴转速范围 Spindle speed |
50-2500rpm |
|
拖板最大行程 Slider travel |
480mm |
|
尾座主轴行程 Tailstock tape ; |
70mm |
|
可加工螺纹范围 Metric thread ; |
公制0.2-3.5mm |
|
主电机 Power of Motor |
1.1KW |
|
重量 Weight |
120KG |
|
外形尺寸Product size |
1150x560x570mm |
